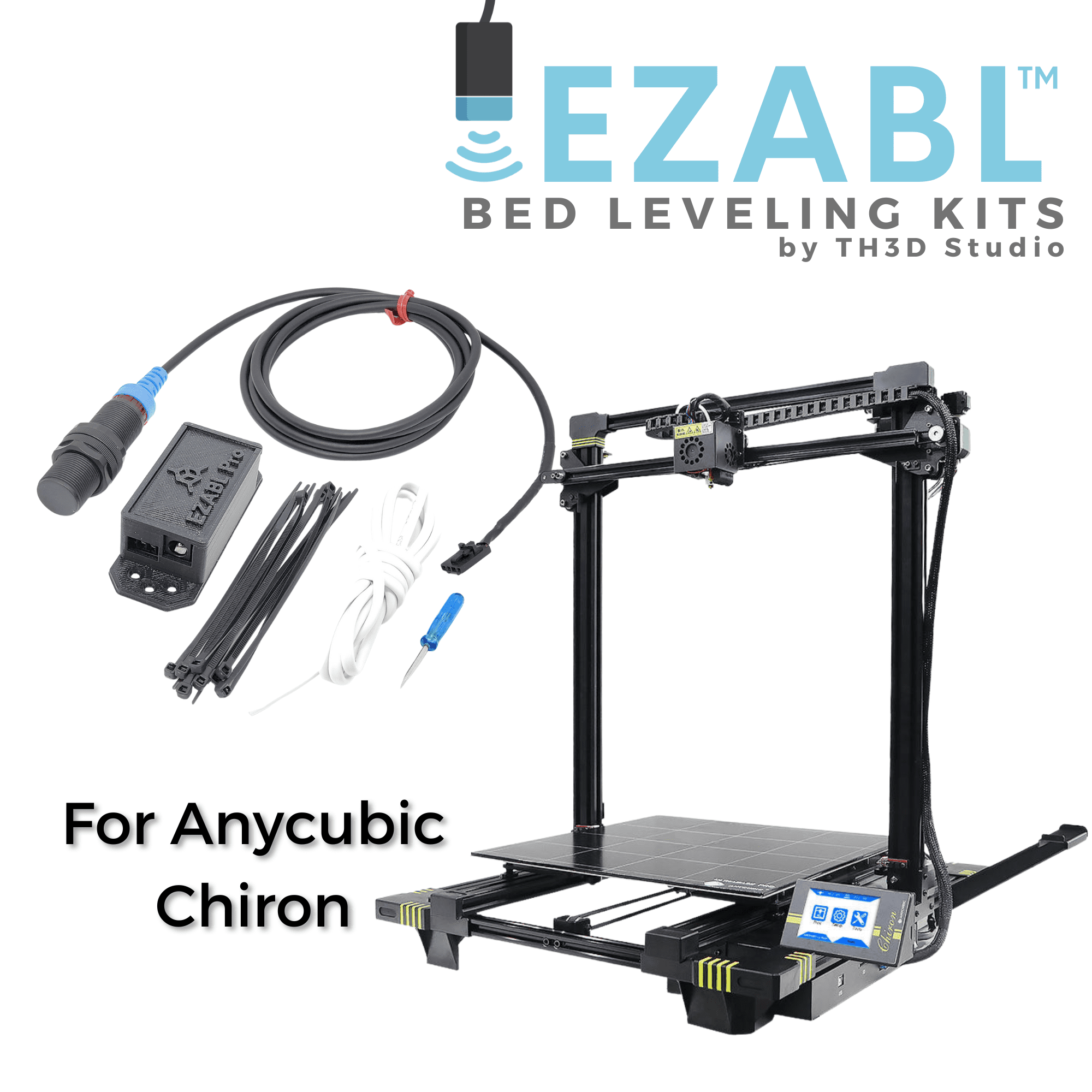

EZABL™ NG Bed Leveling Kit for Anycubic Chiron
From: $53.47
Tired of leveling your printer bed by hand or having issues with the BLTouch or CRTouch? Let our EZABL do it for you! Requires our LCD kit (read below for details). Our EZABL is fast, high quality, reliable, and easy. We also include technical support from our US support team – you don’t get this from the BLTouch/CRTouch.
Description
Product Notes: The Anycubic Chiron requires a 12864 display due to incompatibility with the stock touchscreen. In order to use our EZABL kit, you must also swap the LCD using our kit. You can purchase that separately here: Anycubic Chiron 12864 LCD Conversion/Upgrade Kit The AnyCubic Chiron also has special instructions for the installation of the EZABL Pro kits that can be found here: AnyCubic Chiron EZABL Control Board Connection Info
EZABL™ Quick Links
Installation Guide, Firmware, and STL Files
- EZABL Installation Guide
- Unified 2 Firmware Downloads
- Klipper Setup Guide
- Sensor Mounts and other STL Files
Setting up with standard Marlin or have a printer with a 3rd party control board?
Check out our setup guide here: EZABL Firmware Setup for “Vanilla” Marlin
Troubleshooting Information Help Center in the “EZABL” section. Need help that our troubleshooting articles don’t cover or have a question? Send us a message with our Contact Us page.
EZABL™ FAQ
How Does the EZABL™ Mount?
The EZABL™ mounts to your printer hotend and we supply STL files for over 40+ different mounting options for the 25+ machines we support. All our STL files are located in the Unified 2 STL Pack. You will either need to print a mount for your particular printer or select one from our OEM mount selection above.
You may need some M3 screws (or others depending on the mount) to mount the sensor and we have a screw assortment that covers all the sizes you may need for all the most popular mounts.
Do I need to have a bootloader on my printer?
Yes, you do and most modern printers have this already loaded on the board. Almost all 32 Bit CPU boards come with bootloaders on them.
If your printer has a 1284p CPU on it, then you will need to flash the bootloader. Click here to get our Bootloader kit.
If you are not sure you can use the Live Chat or Contact Us and we can let you know if your printer needs a bootloader flashed or not.
Does the EZABL work with Klipper?
Yes, these probes are supported by Klipper firmware. You can see our Klipper setup guide here: https://tickets.th3dstudio.com/products/article/ezabl-klipper-setup-guide
Before installing our probe you must make sure the rest of your Klipper setup is completed. If you need assistance with a simple config change/check related to the EZABL sensor it is covered.
If your issue is more involved and you are using Klipper, that call time will be billable. EZABL customers get 20% off remote support services if they need it.
What is the accuracy of the EZABL™?
On a machine with no mechanical issues and a properly installed sensor our kits typically achieve 0.01mm or better accuracy. Most of our customers report a M48 result of 0.005-0.001mm when properly installed.
What is the warranty length?
EZABL NG kits come with a 1 year warranty and support length.
Can you include a sensor mount?
We have “OEM” mounts available above as optional addons but if you want a custom mount printed up we also offer print services in PLA, PETG, and ABS. Contact Us with the STL files if you want a custom mount printed.
How much does the EZABL™ sensor weigh?
- NG-18 is about 0.8oz w/2x Included Nuts
- NG-8 is about 0.3oz w/2x Included Nuts
What is the maximum ambient temperature the EZABL™ can operate in?
The maximum ambient temperature recommended is up to 70C. We have tested them in enclosures up to 75C ambient temperatures.
Ambient is the temperature of the air around the sensor. You can use our EZABL on bed temperatures up to 150C.
Does the EZABL™ work on *insert surface here*?
The higher end NG sensors work on all print surfaces that you print on. Our sensors do not require a special type or color of surface to work. This means you can use them on glass, pei, steel, flexplates, garolite, FR4, and more!
What is the difference between the EZABL™ Probe Sizes?
Just the physical size and weight of the sensor. We have smaller sensors for people who want a smaller, lighter probe for specialized applications where the larger 18mm probe will not fit.
Will the EZABL™ work with an AC Bed?
Yes! We’ve made excellent sensors that make them work on AC beds that are properly connected with a quality SSR. If you use a good SSR (like the Mager we sell) then you will have no issues with your EZABL™ kit with an AC bed (and you can control the bed from your printer!)
Where is the EZABL™ made?
The EZABL™ is designed by TH3D and we use multiple suppliers across the globe to source the parts and build our custom EZABL™ boards & sensors. All final testing, QC, packaging, and support is done here in the US. Sensors and control boards are Made in China and Designed in the US. Printed parts are Made in the US. Other accessories vary, refer to product pages for COO.
I have a custom printer or one with a control board I swapped, will you setup my firmware for me?
The EZABL will work with any Marlin, Klipper, or RepRap based machine. However, our included support covers machines that are listed above with their original control boards (or supported aftermarket boards) and our Unified Firmware. On custom printers (this includes models we support but with their boards swapped) we cannot possibly account for every variation when a customer swaps their board or has a custom machine.
Does the EZABL™ Kit work with OctoPrint/EZPi?
Absolutely! We love OctoPrint and use it here. Every one of our production machines has an EZPi kit on it and our EZABL™ kit.
Have a question we didn’t cover here?
No problem! Contact our Support Team or use our Live Chat with any questions you may have and we’ll be happy to answer them!
Reviews (2)
2 reviews for EZABL™ NG Bed Leveling Kit for Anycubic Chiron
Add a review
Additional information
EZABL™ NG Sensor
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Sensor Model | NG-18, NG-8 |
| Made In | 🇨🇳 China w/QC in 🇺🇸 USA |
| Warranty Length | 1 Year for NG Kits |
EZABL™ NG Control Box
| Weight | 4 oz |
|---|---|
| Dimensions | 3 × 3 × 1 in |
| Made In | 🇨🇳 China w/QC in 🇺🇸 USA, 🇺🇸 USA (with 🇺🇸 USA and 🌎 Global Materials) |
| Warranty Length | 1 Year for NG Kits, 6 Months for NG LITE Kits |
EZABL Sensor Mount
| Weight | 1 oz |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Mount Type | Chiron |
| Made In | 🇺🇸 USA (with 🇺🇸 USA and 🌎 Global Materials) |
| Warranty Length | 6 Months |
AnyCubic Chiron Solid Bed Mounts - ABS
| Weight | 4 oz |
|---|---|
| Dimensions | 2 × 2 × 2 in |
| Made In | 🇺🇸 USA (with 🇺🇸 USA and 🌎 Global Materials) |
| Warranty Length | 6 Months |
EZABL AC Power Adapter
| Weight | 4 oz |
|---|---|
| Dimensions | 3 × 3 × 2 in |
| Made In | 🇨🇳 China |
| Warranty Length | 6 Months |
Unified 2 Firmware for AnyCubic Chiron
| Update Length | 3 Months |
|---|---|
| Firmware Package | AnyCubic Ramps Printers |
| Made In | 🇺🇸 USA |
Related products
Jonathan Blunt (verified owner) –
The sensor is well designed and works very well, super accurate and allows for easy bed leveling on the Anycubic Chiron, the cable could be 3-4 inches longer to account for the extremely tall gantry height, when the print bed is near maxed out the sensor harness is being stretched. I rarely print stuff this tall but it is worth considering if you use the bed to max height you might have to add some wiring near the sensor connector to get a few inches of length depending on how you route it. I would also suggest adding an option to purchase the sensor on its own, my first sensor lasted over 2 years and thousands of prints before the harness failed in the cable chain. This sensor has a new silicone wire harness design and should last just as long if not longer. The sensor has the same connector as previous design and works with the old control box as well, no need to swap the controller. I have always had good experiences with TH3D and would recommend the EZABL kit as well as all their other Chiron upgrades they offer. The Chiron is a beast of a printer once utilizing all the TH3D upgrades. 5 Stars would definitely recommend!
Patrcia Aquino (verified owner) –
Product is well made and easy to install. The only complaint that I have is that the cable of the sensor could be made a little bit longer. To protect the cable I did not tie it up along the cable chain to avoid being stretch out by the constant movement of the chain. Tie it together with the bowden tube is a much better option. I found the wire to connect the NG control box to the power supply can easily break when tightening up the terminal screws but manage to get it in after a few tries.
Overall, I am happy I saw this kit and the companion LCD kit for my Chiron. Now I will have a better results from this beast of a printer.
