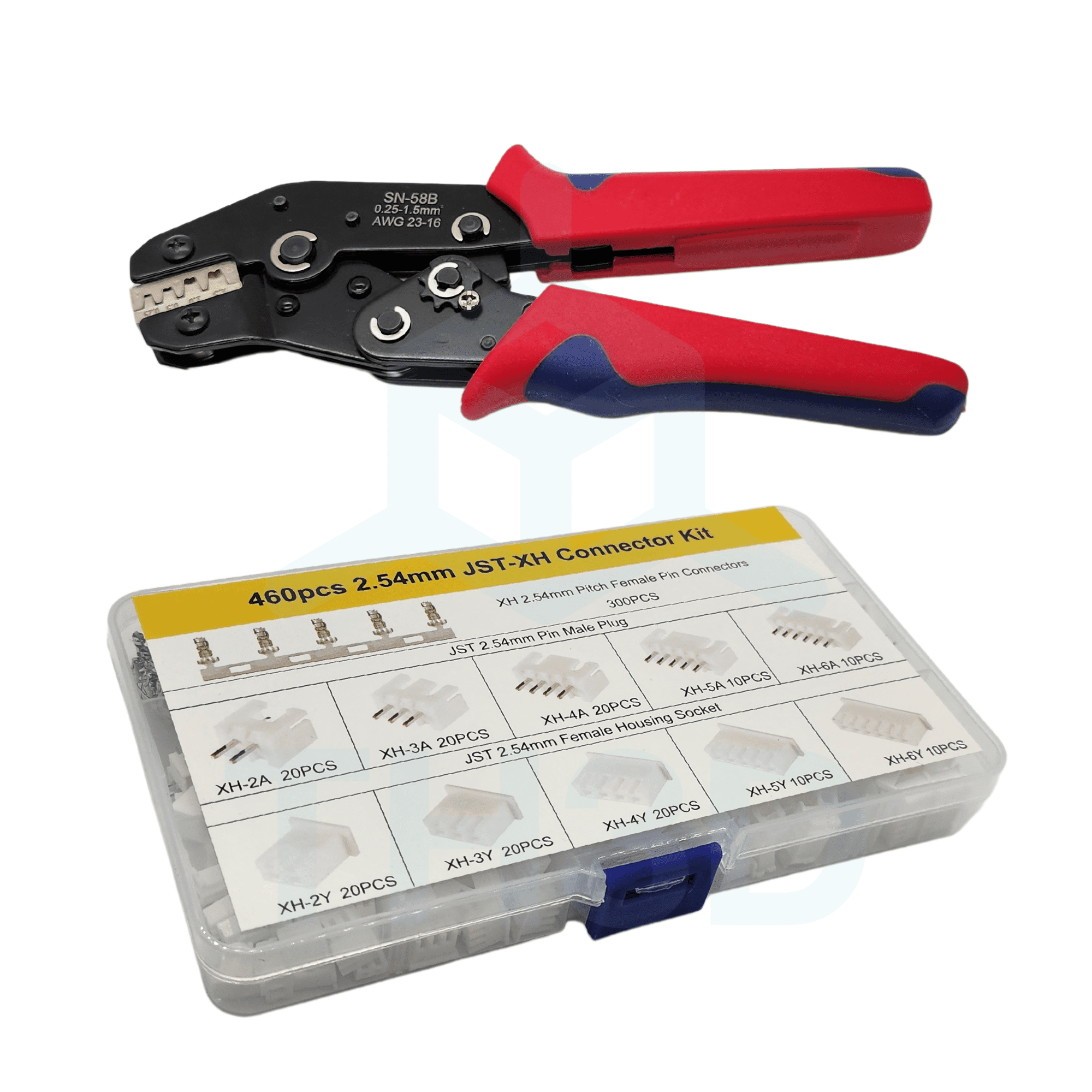

JST-XH Type Connector Kit + Crimper Bundle

This bundle includes our Crimp Tool and JST-XH Type plug and socket kit.

Ratcheting Crimping Tool for DuPont, JST, TE, & Molex Terminals

This is a high-quality crimp tool for most connectors we use on our 3D printers. This ratcheting type lets you get a consistent crimp and does a DOUBLE crimp in one squeeze. The handle is comfortable for repeat use. There is also a tension adjustment on the side with the silver philips head screw. Works with the following type of connectors/pins

• 2.54mm
• 3.96mm
• 4.8mm
• 5.08mm
• 6.3mm
• JST Pins
• Molex Pins

JST-XH Type Connector Kit – Plugs and Headers

This kit is great for making your own cables and extensions. It includes 300 pins for the ends and 2-6 pin ends with matching headers. Use our Ratcheting Crimp tool for the best results. These connectors are commonly used on 3D printers for stepper motors, thermistors, endstops, hotend heaters, and many more connectors. Includes a handy organizer case to keep things separated for quick access. Ratings

• Current Rating – 3A AC/DC MAX (this is per pair of wires)
• Voltage Rating – 0-200V AC/DC MAX
• Wire Size – 30-22AWG
• Temp Rating – -25C to 85C

Part List

• 20x – 2 Pin Header
• 20x – 3 Pin Header
• 20x – 4 Pin Header
• 10x – 5 Pin Header
• 10x – 6 Pin Header
• 20x – 2 Pin Plug
• 20x – 3 Pin Plug
• 20x – 4 Pin Plug
• 10x – 5 Pin Plug
• 10x – 6 Pin Plug
• 300x – 2.54mm Female Pins
